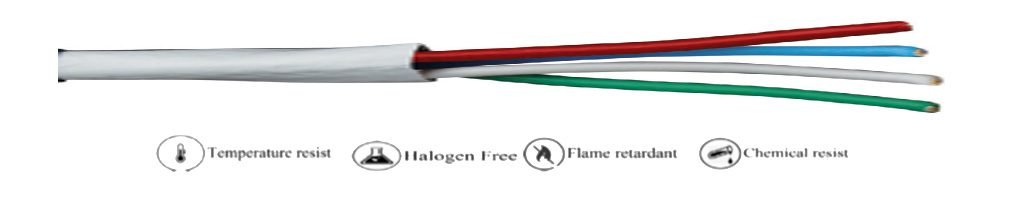

MULTI-CORE PTFE UNSHIELDED CABLE
PTFE insulated multi-core cables are mainly used for high-reliability and high-temperature interconnections for signal and control applications. We offer multiple core PTFE insulated & PTFE sheathed cable.
Technical Details
| Design Standard | JSS 51034, JSS 51038, MIL 16878, IS 8130 |
| Conductor | Annealed Bare Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type | Solid wire / Multistrand |
| No of Core | 2, 3, 4, 6, 7, 8,12,14,16,32,48,96 or as per customer requirements |
| Conductor Size (Sqmm) | AWG 28 to AWG 14 or as per customer requirement |
| Insulation | Wrapped & Sintered PTFE |
| Core Identification | With different colors |
| Isolator | Polyimide tape |
| Outer Sheath | Wrapped & Sintered PTFE |
| Outer Color | White/Grey or as per Customer Requirement |
| Voltage Grade | 300V / 500V / 1100V |
| Cable Temperature Range | -65 Deg C to Up to 260 Deg C |
Applications:
- For Data Transmission used in measurement & control technology in high temperature zone.
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame & Fire Resistance
- Temperature range up to 260 Deg C
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Good Flexibility
- Excellent Dielectric Strength
- Excellent Insulation resistance
- Good abrasion resistance
- Chemical & Oil Resistance
