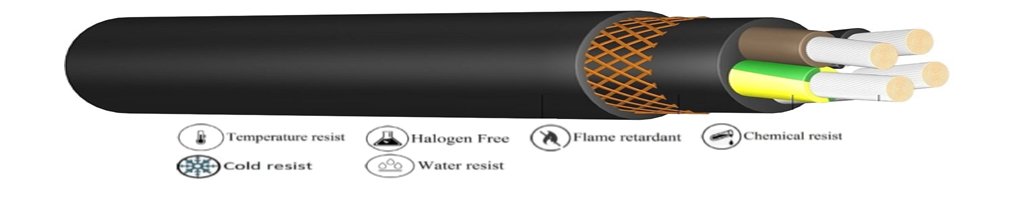

Trailing Cables
A&A Alloys expertise in manufacturing supreme quality Trailing Cables . These cables are widely demanded by mainly Steel, Iron & Sponge & Mining sectors. These are manufactured as per Indian Standard IS : 9968 (Pt-1). Quality rubber is used for insulation to protect the cables from water and ensure high tensile strength.
CONSTRUCTION PARAMETERS :
| Confirms to | IS 9968, IS 6380, IS 8130 |
| Conductor | Flexible annealed Bare Copper / Tinned plated Copper |
| Conductor type | Flexible class 5 as per IS 8130 |
| Insulation | EPR Insulation |
| Screening (Optional) | Tinned or bare copper wire braid with min 65 % coverage area |
| Inner sheath | Type SE 1/ SE2 / SE3 / SE4 & HOFR elastomeric sheath |
| Braiding | Fibre braid embedded between inner and outer sheath |
| Outer sheath | Type SE 1/ SE2 / SE3 / SE4 & HOFR elastomeric sheath |
| Color | Black |
| Voltage Grade | 1100 V |
Applications:
- Building machineries
- Conveyor system
- Rotary Kiln
- Lifting system
- Cement plants
- Steel Mils
- Automobile industries
- Refineries & Petrochemical industries
- Glass Industries
Features:
- Oil & water resistance
- Excellent Flexibility
- Excellent heat resistant
- Flame retardant as per IEC 60332-1-2
- Fire resist
- Excellent electrical performance
- Halogen Free
- Temperature resistance up to 90 °C
