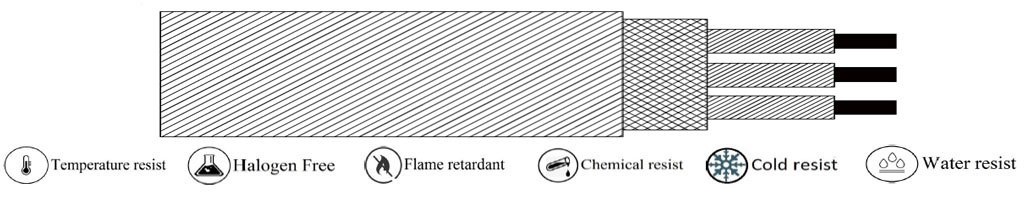

(RTD-C008) Silicon-Copper Screening-Silicon

Design Standard	As per IS 9968, IS 6380, DIN 43760
Conductor	Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper
Conductor Type	Solid wire / Flexible
No of Core	2, 3,4,6,8 or as per customer requirements
Conductor Size(Sqmm)	AWG 28 to AWG 14 or as per customer requirement
Insulation	Extrude Silicon
Core Identification	As per DIN or Customer Requirement
Isolator	Cores laid up together and isolated with polyester tape
Screening	Tinned Copper/Bare Copper/Nickel Plated Copper/Silver Plated Copper
Outer Sheath	Extruded Silicon
Outer Colour	White or as per customer requirement
Voltage Grade	300V / 600 V / 1100 V
Temperature Range	-50 Deg C to 180 Deg C

Categories: Cables, RTD Cables

Applications:

For Signal & Data Transmission used in measurement & control technology in high temperature zone
Analogue & Digital signal transmission
Industry plant, power station, refineries, petrochemical plants etc.
Industry plant, power station, refineries, petrochemical plants etc.
In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
