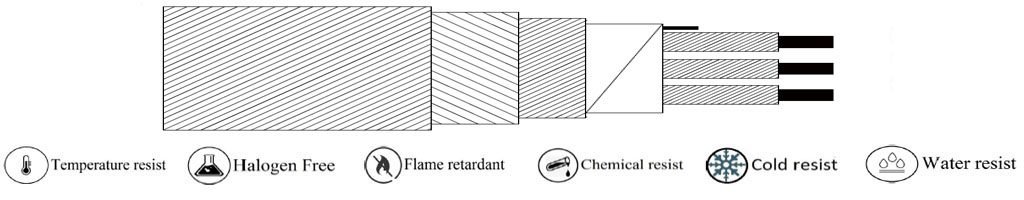

(RTD-C016) PVC-Almylar Screen-PVC-G.I. Armouring-PVC

Technical Details

Design Standard IS 1554, BS 5308, DIN 43760 , IS 8130
Conductor Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper
Conductor Type Solid wire / Flexible
No of Core 2, 3,4,6,8 or as per customer requirements
Conductor Size(Sqmm) AWG 24 to AWG 14 or as per customer requirement
Insulation PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Core Identification As per DIN
Screening Almylar tape screening with 100 % Coverage area
Inner Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Armouring Galvanized Steel Wire/Flat Strip
Outer Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Outer Colour White or as per customer requirement
Voltage Grade 300V / 600 V / 1100 V
Temperature Range -40 Deg C to 105 Deg C
Categories: ,

Applications:

  • For Signal & Data Transmission used in measurement & control technology in high temperature zone
  • Analogue & Digital signal transmission
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Industry plant, power station, refineries, petrochemical plants etc.
  • In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.

Features:

  • Flame retardant according to IEC60332
  • Temperature range up to 105 Deg C
  • Halogen Free & Low smoke
  • Good flexibility
  • Excellent protection to external electromagnetic & noise interference
  • Smooth surface finishing
  • Good Dielectric Strength
  • Good Insulation resistance
  • Good abrasion resistance
  • Excellent moisture, chemical & Oil Resistance
