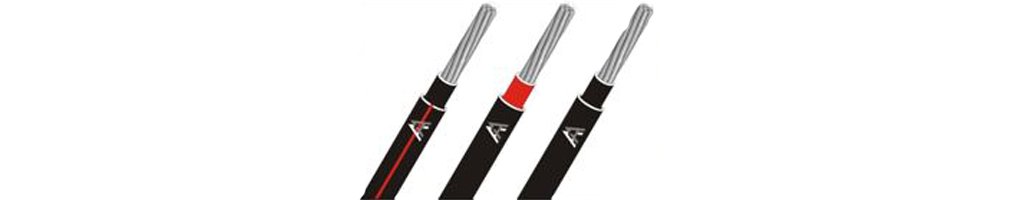

Solar Cables

A solar cable is used to interconnect solar panels and other electrical components in the photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. Solar cables are manufactured in accordance with EN50618 standard and various Indian /International standards.

We are providing solar cables with following designs

Design 1: XLPE Insulation / UV resist PVC Sheathed (105 °C rated)

Design 2: Cross linked Polyolefin Insulation / Outer Cross linked Polyolefin sheathed (125 °C rated)

Design 3: XLPE Insulation / UV resist LSZH PVC Sheathed (90 °C rated)

Special Features:

Long life durability: lasts up to 25 years under tough condition

Excellent protection against Ultraviolet rays              :         Low smoke emission & low toxicity during fire

Superb flexibility & stripability for fast installation     :       Weather resistant

Wide temperature range from -40°C to 125°C          :           Resist to mineral oils, acid & alkaline

Electrical features:

Voltage rating: 1.5 (1.8) KVDC, 0.6/1.0 (1.2) KVAC

High voltage test at 6.5 KVDC for 5 minutes
