lead wire PTFE FEP PFA ETFE
LEAD WIRES/HOOK UP WIRES FLROPOLYMER (PTFE, FEP, PFA,ETFE)
We offer variety of standard and custom PTFE insulated hook up wires as per military standard JSS5 51034 &
MIL-W-16878. PTFE wires are available with Silver plated copper, Nickel plated copper & Bare copper.
Beyond PTFE hook up wires we also offer FEP, Fiber glass, Polyimide insulated wires for Defense, Nuclear,
Aerospace & other applications.

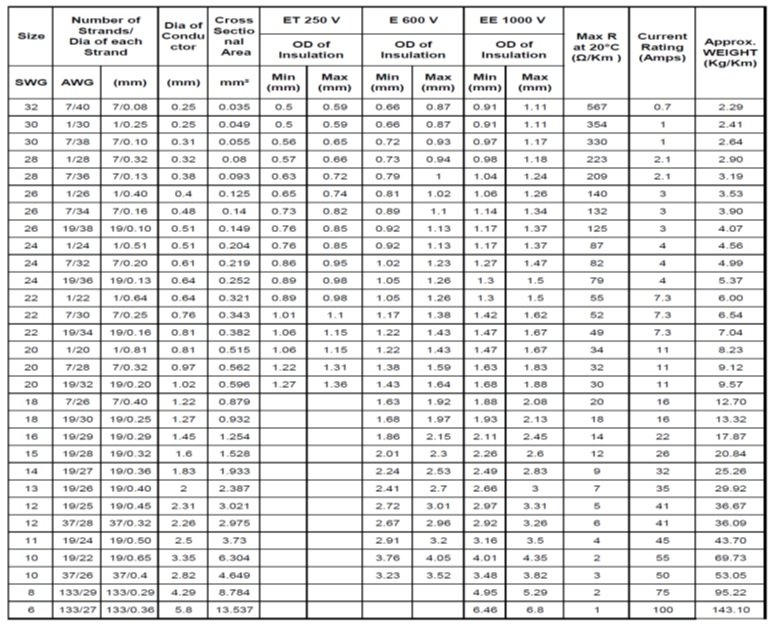

In below table of lead wire Change SWG to AWG
| Type | ET | E | EE |
| Voltage Grade | 250V | 600V | 1000V |
| Tested Voltage | 1000VAC | 2000VAC | 3000VAC |
| Available with Solid / MultistrandSpecial Features
| Shielded / Unshielded
| Better selectivity of insulation range up to 800 Deg C as per your application
| Voltage Grade selectivity 250V/600V/1100 V.
| Available with Copper, NPC, TPC, SPC & Pure Nickel Conductors
LEAD WIRES AS PER JSS 51034/MIL-W-16878
Other lead wires are also available in following insulation category
1) Silicon Insulated Up to 1.1 KV Voltage Grade 180 °C rated
2) Fiber Glass Insulated Up to 1.1 KV Voltage Grade 450 °C rated
3) Ceramic Fiber Insulated Up to 1.1 KV Voltage Grade 800 °C rated
4) Silicon outer Fiber Glass Braided: Up to 1.1 KV Voltage Grade 200 °C rated
5) Polyimide Insulated Up to 1.1 KV Voltage Grade 310 °C rated
For detail specifications or quote kindly email us to info@alloycab.com.
