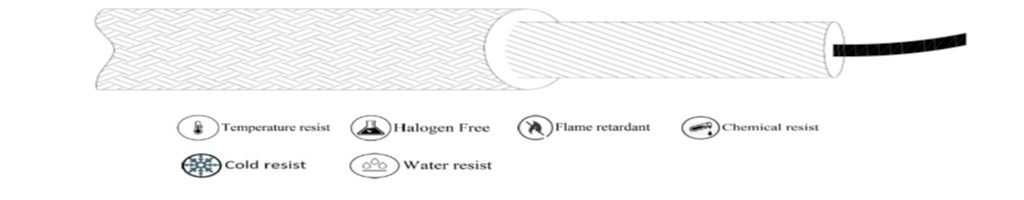

(HEATER-C350) PTFE-FIBER GLASS BRAIDING
Technical Details
| Conductor |
Nickel Plated Copper/Pure Nickel |
| Conductor Type |
Stranded (Class 2) / Flexible (Class 5) |
| Conductor Size | 0.22 to 6 Sqmm or as per custoemr specifications |
| Insulation |
Wrapped & Sintered PTFE |
| Sheath |
Braided Fiber Glass yarn with high temperature varnish |
| Colour |
By different colour thread |
| Voltage Grade |
Up to 600 V, 1100 V |
| Temperature Range |
Up to 350 Deg C |
Applications:
- Electrical connection in high temperature equipements
- Internal wiring of commercial & industrial heating equipements
- Internal wiring of commercial & industrial cooking equipements
- High Temperature furnaces
- Muffle Furnace
- Microwave ovens
- Power connection in heating zone areas
Features:
- Temperature range up to 350 Deg C
- Good temperature resistance
- Excellence Heat Resistance Properties
- Outstanding resistance against chemicals & solvent
- Wheather resistance
- Excellent dielectric strength & insulating properties
- Flame Retardant and self-extinguishing acc. To IEC 60332, JSS 51034
- Superb thermal resistance
