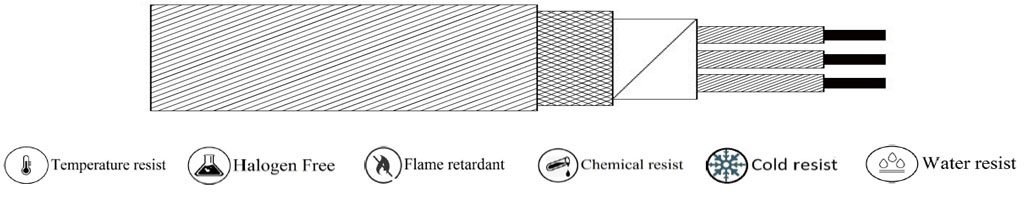

(RTD-C015) PVC-Copper Screen-PVC

Technical Details

Design Standard As per DIN 43760, JSS 51034,JSS 51038, IS 8130
Conductor Annealed Bare Copper/Nickel Plated Copper/Silver Plated Copper
Conductor Type Solid wire / Flexible
No of Core 2,3,4,6,8 or as per customer requirements
Conductor Size(Sqmm) AWG 28 to AWG 14 or as per customer requirement
Insulation Wrapped & Sintered PTFE
Core Identification As per DIN or Customer Requirement
Isolator Polyimide tape
Screening Bare Copper Wire/Nickel Plated Copper/Silver Plated Copper with covering
>65 % Coverage area
Outer Sheath Wrapped & Sintered PTFE
Outer Colour White (As per DIN) or as per Customer Requirement
Voltage Grade 300V / 500V / 1100V
Cable Temperature Range -65 Deg C to Up to 260 Deg C/td>
Categories: ,

Applications:

  • For Signal & Data Transmission used in measurement & control technology in high temperature zone
  • Analogue & Digital signal transmission
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Industry plant, power station, refineries, petrochemical plants etc.
  • In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.

Features:

  • Flame & Fire Resistance
  • Temperature range up to 260 Deg C
  • Halogen Free & Low smoke
  • Enhance thermal, electrical & fire properties
  • Good Flexibility
  • Excellent Dielectric Strength
  • Excellent Insulation resistance
  • Good abrasion resistance
  • Chemical & Oil Resistance
