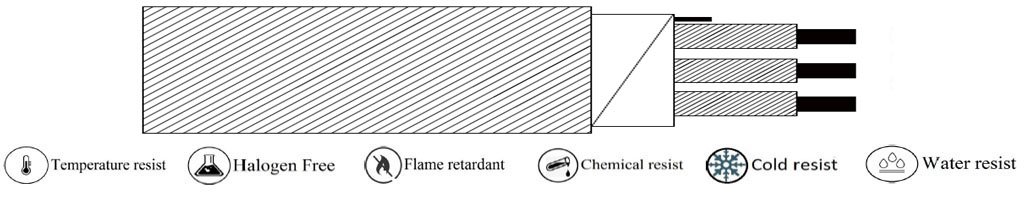

(CONTROL-C002) PVC Insulation-Almylar Screen-PVC Sheathed
Technical Details
| Design Standard |
As per BS 5308, BS 50288-7,IS 1554, IS 8130, IEC 60332-1 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper |
| Conductor Type |
Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5) |
| No of Core |
1, 2, 3,4,6,8,10,12,16, 24 or as per customer requirements |
| Conductor Size(Sqmm) |
0.5/0.75/1.0/1.5/2.5 or as per customer specifications |
| Insulation |
PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC / LDPE/HDPE |
| Core Identification |
- 2 Core : Red & Black
- 3 Core : Red, Yellow & Blue
- 4 Core : Red, Yellow, Blue & Black
- 5 Core : Red, Yellow, Blue, Black & Grey
- Above 6 core : Black /Grey colour with numbering
|
| Screening |
Overall Almylar tape screening along with drain wire covering 100 % area |
| Inner/Outer Sheath |
PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC (Black Colour) |
| Armouring |
Galvanised steel wire Armouring / Galvanised Flat Strip |
| Outer Colour |
Black/ Blue or as per customer specifications |
| Voltage Grade |
300V / 500 V (1100 V also available on customer specifications) |
| Temperature Range |
-30 Deg C to 105 Deg C |
Applications:
- Plant engineering, Commercial & Domestic Construction
- Heating & Cooling system
- Industry plant, power station, refineries, petrochemical plants etc.
- Generally used in indoor installation
- For signal & data communication
- Industrial Machineries
- Use where high mechanical load environment
- Dry or dump rooms under lower mechanical loads
Features:
- Oil & water resistance
- Excellent Mechanical Strength
- Space saving installation due to lower diameter & flexibility
- Flame retardant as per IEC 60332-1-2
- Excellent electrical performance
- Available halogen free option
- Lower density Polyethylene insulation option available for higher insulation resistance
- 12 X OD Minimum Bending Radius for occasional flexing
- 10 X OD minimum Bending radius for fixed installation
- Available as per European IEC 60502 & other standard
