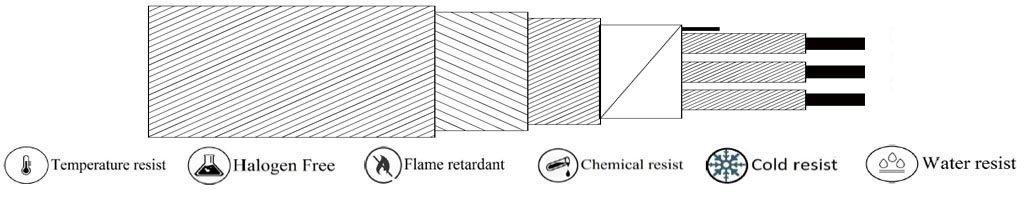

(CONTROL-C003) PVC -Almylar Screen-G.I. Armouring-PVC

Technical Details

Design Standard As per BS 5308, BS 50288-7,IS 694, IS 8130, IEC 60332-1
Conductor Annealed Bare Copper/Tinned Plated Copper
Conductor Type Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5)
No of Core 1, 2, 3,4,6,8,10,12,16, 24 or as per customer requirements
Conductor Size(Sqmm) 0.5/0.75/1.0/1.5/2.5 or as per customer specifications
Insulation PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC / LDPE/HDPE
Core Identification
  • 2 Core : Red & Black
  • 3 Core : Red, Yellow & Blue
  • 4 Core : Red, Yellow, Blue & Black
  • 5 Core : Red, Yellow, Blue, Black & Grey
Screening Overall Almylar tape screening along with drain wire covering 100 % area
Outer Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Outer Colour Black/ Blue or as per customer specifications
Voltage Grade 300V / 500 V /1100 V
Temperature Range -30 Deg C to 105 Deg C
Categories: ,

Applications:

  • Plant engineering, Commercial & Domestic Construction
  • Heating & Cooling system
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Generally used in indoor installation
  • For signal & data communication
  • Industrial Machineries
  • Dry or dump rooms under lower mechanical loads
  • Electronics & Computer systems

Features:

  • Oil & water resistance
  • Excellent Flexibility
  • Space saving installation due to lower diameter & flexibility
  • Flame retardant as per IEC 60332-1-2
  • Excellent electrical performance
  • Available halogen free option
  • Lower density Polyethylene insulation option available for higher insulation resistance
  • 15 X OD Minimum Bending Radius for occasional flexing
  • 8 X OD minimum Bending radius for fixed installation
  • Available as per European IEC 60227, IEC  60502 & other standard
