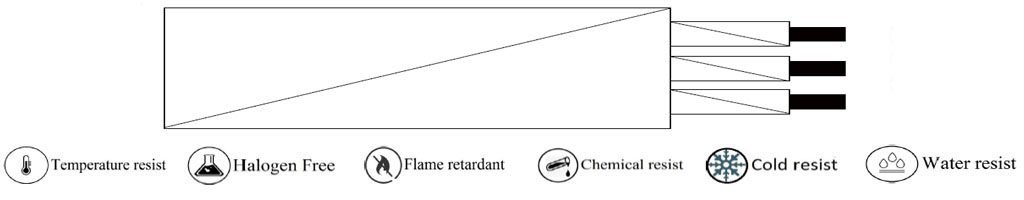

(RTD-C013) Polymide-Polymide
Technical Details
| Design Standard |
JSS 51037, IS 8130 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type |
Solid wire / Flexible |
| No of Core |
2, 3,4,6,8 or as per customer requirements |
| Conductor Size(Sqmm) |
AWG 28 to AWG 14 or as per customer requirement |
| Insulation |
Wrapped & Sintered Polyimide tape |
| Core Identification |
By Color Thread |
| By Color Thread |
Wrapped & Sintered Polyimide tape |
| Outer Colour |
Natural (Polymide Color) |
| Voltage Grade |
300V / 600 V / 1100 V |
| Temperature Range |
Up to 315 Deg C |
Applications:
- For Signal & Data Transmission used in measurement & control technology in high temperature zone
- Analogue & Digital signal transmission
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame resistance as per IEC 60332
- Light weight, lower diameter
- Thin film insulation
- Temperature range up to 315 Deg C
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Good Flexibility
- Excellent Dielectric Strength
- Excellent Insulation resistance
