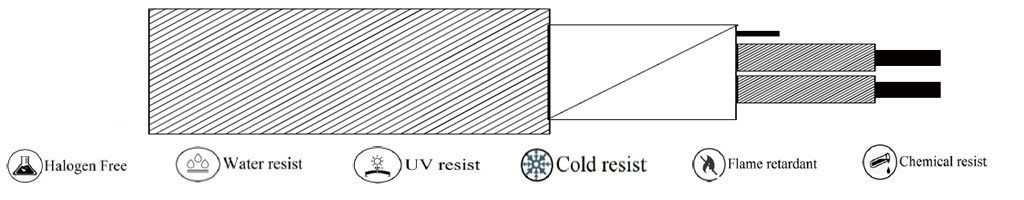

(INST-C010) PTFE – Almylar SCREENING- PTFE
Technical Details
| Design Standard | As per JSS 51038, JSS 51037, JSS 51034, IS 8130 |
| Conductor | Annealed Bare Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type | Solid wire (Class 1) /Stranded (Class 2)/ Flexible (Class 5) |
| No of Pair | 1,2,3,4,6,8 or as per customer requirements |
| Conductor Size(Sqmm) | 0.50/0.75/1.0/1.5 sqmm or as per customer specifications |
| Insulation | Wrapped & Sintered PTFE |
| Core Identification | As per BS 5308 & as per customer requirements |
| Screening | Almylar tape screening along with ATC Drain wire with 100 % Coverage area |
| Outer Sheath | Wrapped & Sintered PTFE |
| Outer Colour | Blue / Black or as per Customer Requirement |
| Voltage Grade | 300V / 500V / 1100V |
| Cable Temperature Range | -65 Deg C to Up to 260 Deg C |
Electrical Characteristics
|
Parameter |
Unit |
Conductor Size |
|||
|
Size |
Sqmm |
0.5 |
0.75 |
1.0 |
1.5 |
|
Max. Resistance at 20 Deg c |
Ohm/Km |
36.8 |
25.0 |
18.4 |
12.3 |
|
Max. Mutual Capacitance between cores |
Pf/m |
75 |
75 |
75 |
85 |
|
Max. Capacitance between core to screen |
Pf/m |
400 |
400 |
400 |
400 |
|
Insulation Resistance at 20 °C |
Mohm-Km |
> 1500 |
|||
|
Tested Voltage |
KVac |
1.0 Kv for 1 Minute |
|||
|
Min Bending Radius |
Mm |
10 X OD |
|||
Applications:
- For Signal & Data Transmission used in measurement & control technology in high temperature zone
- Analogue & Digital signal transmission
- Industry plant, power station, refineries, petrochemical plants etc.
- Process control, computers, control systems & monitor networks etc.
Features:
- Flame & Fire Resistance
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Good Flexibility
- Excellent Dielectric Strength
- Excellent Insulation resistance
- Suitable for digital signal transmission
- Excellent Heat resistance & chemical resistance characteristics
- Offers excellent immunity to cross talk & low
