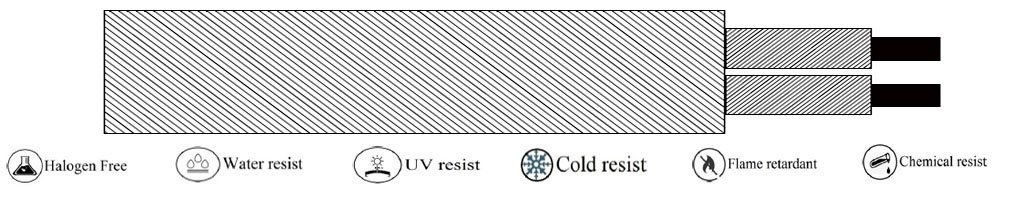

(TC-C001) PTFE – PTFE

Technical Details

Design Standard As per JSS 51038, ANSI MC 96.1, IS 8784 & IEC 60584.3
Conductor K/J/T/E/N/KCB/KCA/KX/EX/TX/NX/TX/JX/SC/RC or as per Picture No 1
Conductor Type Solid wire / Flexible
No of Pair Single / Multi pair
Conductor Size AWG 34 AWG to 14 AWG or Variant as per customer specifications, Refer Size Chart Picture No.2
Insulation Wrapped & Sintered PTFE
Core Identification As per Picture No 1
Outer Sheath Wrapped & Sintered PTFE
Accuracy As per Picture No. 1
Resistance As per ANSI MC 96.1
Cable Temperature Range -65 Deg C to 260 Deg C

Applications:

  • Used for measuring the temperature
  • For carry the mV signal from sensor to panel
  • In Laboratory for calibration of high temperature furnaces
  • Industry plant, power station, refineries, petrochemical plants etc.
  • In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.

Features:

  • Flame & Fire Resistance
  • Temperature range up to 260 Deg C
  • Halogen Free & Low smoke
  • Enhance thermal, electrical & fire properties
  • Good Flexibility
  • Excellent Dielectric Strength
  • Excellent Insulation resistance
  • Good abrasion resistance
  • Chemical & Oil Resistance
