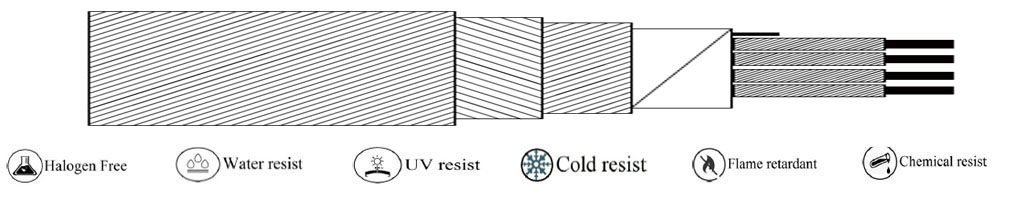

(TC-C020) PVC-Almylar Screen-PVC-G.I. Armouring-PVC

Design Standard	IS 1554, ANSI MC 96.1, IS 8784 & IEC 60584.3,BS 5308-II
Conductor	KCB/KCA/KX/EX/TX/NX/TX/JX/SC/RC or as per Picture No 1
Conductor Type	Solid wire / Flexible
No of Pair	Single / Multi pair
Conductor Size	AWG 24 AWG to 14 AWG or Variant as per customer specifications, Refer Size Chart Picture No.2
Insulation	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Screening	Almylar tape screening with 100 % Coverage area (In multi pair Optional: Individual& Overall/Overall Screening)
Core Identification	As per Picture No 1
Inner Sheath	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Armouring	Galvanized Steel Wire/Flat Strip as per IS 3975
Outer Sheath	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Outer Colour	As per Picture No. 1
Accuracy	As per Picture No. 1
Resistance	As per ANSI MC 96.1
Voltage Grade	300V / 600 V / 1100 V
Temperature Range	-40 Deg C to 105 Deg C

Categories: Cables, Thermocouple Cables

Applications:

Used for measuring the temperature
For carry the mV signal from sensor to panel
In Laboratory for calibration of high temperature furnaces
Industry plant, power station, refineries, petrochemical plants etc.
In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
