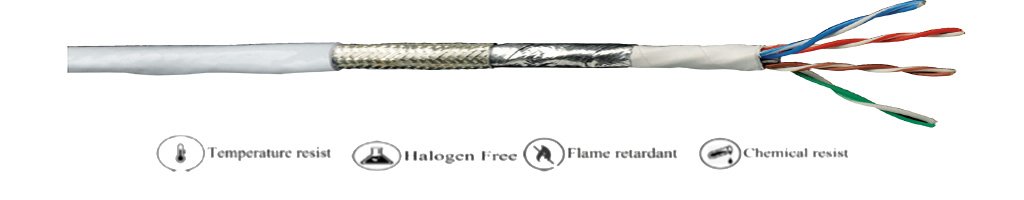

MULTI-PAIR PTFE SHIELDED CABLE
PTFE insulated multi-pair shielded cables used for analogue & digital signal transmission cables under high temperature environmental circumstances. The cables are available in various twisted configurations such as bunched twisting, multiple pair twisting and multiple triads twisting.
Technical Details
| Design Standard | JSS 51034,JSS 51038, MIL 16878, IS 8130 |
| Conductor | Annealed Bare Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type | Solid wire / Multistrand |
| No of Pair/Triad |
1,2, 3, 4, 6, 7,8,12 or as per customer requirements |
| Conductor Size (Sqmm) | AWG 28 to AWG 14 or as per customer requirement |
| Insulation | Wrapped & Sintered PTFE |
| Pair Identification | With different colors & color tracer |
| Pair shielding | Almylar tape screen / Wire braided screen with min 65 % coverage area |
| Isolator | PTFE pair / triad jacket |
| Overall Screening |
Almylar tape screen / Wire braided screen with min 65 % Coverage area |
| Outer Sheath | Wrapped & Sintered PTFE |
| Outer Color | Blue/Black or as per Customer Requirement |
| Voltage Grade | 250V / 600V / 1000V |
| Cable Temperature Range | -65 Deg C to Up to 260 Deg C |
Applications:
- For Data Transmission used in measurement & control technology in high temperature zone.
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame & Fire Resistance
- Temperature range up to 260 Deg C
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Good Flexibility
- Excellent Dielectric Strength
- Excellent Insulation resistance
- Good abrasion resistance
- Chemical & Oil Resistance
