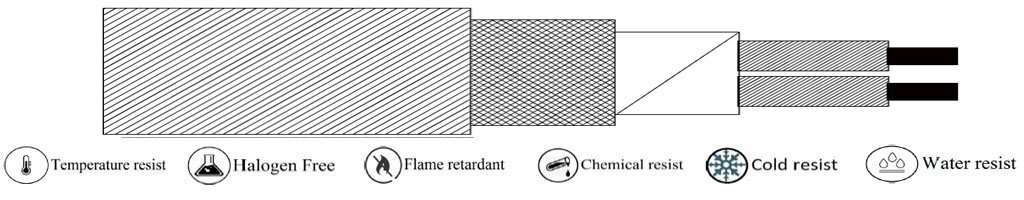

(CONTROL-C004) PVC Insulation-Braided Screen-PVC Sheathed
Technical Details
| Design Standard |
As per IS 6380, IEC 60502, IS 9968, IS 8130, IEC60332-1 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper |
| Conductor Type |
Flexible (Class 5) |
| No of Core |
1, 2, 3,4,6,8,10,12,16, 24 or as per customer requirements |
| Conductor Size(Sqmm) |
0.5/0.75/1.0/1.5/2.5 or as per customer specifications |
| Insulation |
Silicon Rubber |
| Core Identification |
- 2 Core : Red & Black
- 3 Core : Red, Yellow & Blue
- 4 Core : Red, Yellow, Blue & Black
- 5 Core : Red, Yellow, Blue, Black & Grey
- Above 6 core : Black /Grey colour with numbering
|
| Braiding |
Overall Metal (Cu/SS) Braided Shielding with covering minimum 65% coverage area |
| Outer Sheath |
Silicon Rubber |
| Outer Colour |
Black/ Blue or as per customer specifications |
| Voltage Grade |
300V / 500 V /1100 V |
Applications:
- Bakery equipments & industrial equipments
- Electrical Motor industries
- Heating & Cooling equipments
- Due to excellent electrical & mechanical behaviour suitable for sensor technology
- Flexible data cable for low frequency transmission application
- Electronic equipments
- Air Conditioning technology
- Steel, Iron, paper cement & many more industries
Features:
- Resist to high aggressive chemical media, Oil & water
- Protection from external electromagnetic field ensuring excellent data transmission reliability
- Significant reduction in cross talk and interference between the cores
- Superb flexibility
- Flame retardant as per IEC 60332-1-2
- Excellent electrical performance
- Halogen Free
- High Mechanical Strength
- High temperature resistance up to 180 °C
- 4 X OD minimum Bending radius for fixed installation
