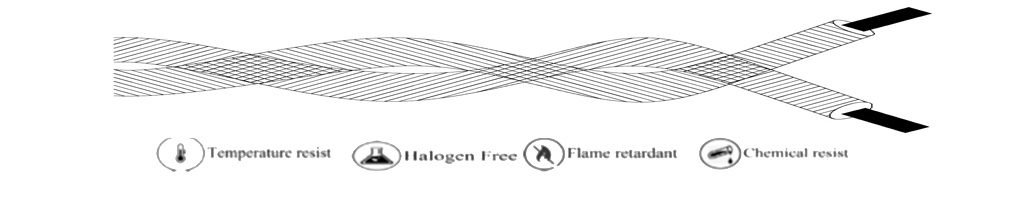

(CHEMOSENS 800) Fiber Glass & Asbestos Lapping
Technical Details
|
Design Standard |
ANSI MC 96.1 , IEC 60584.3 & ASTM E230/77 |
|
Conductor |
K type original conductor & N type original conductor |
|
Conductor Type |
Solid wire (Multistrand optional) |
|
No of Pair |
Single Pair |
|
Conductor Size |
AWG 24 AWG to 14 AWG or Variant as per customer specifications |
|
Insulation |
Fiber Glass & Asbestos yarn lapping with PTFE Impregnated varnish |
|
Cable formation |
Both cores twisted together (Without Jacket) |
|
Outer Colour |
As per ANSI MC 96.1 or as per customer specifications |
|
Accuracy |
As per ANSI MC 96.1 / IEC 60584.3 |
|
Temperature Range |
Up to 800 Deg C |
Applications:
- Metal Production
- Heat treatment
- Temperature sensor
- Brick & Tile kiln
- Industry plant, power station, refineries, petrochemical plants etc.
- In Laboratory for calibration of high temperature furnaces
- In Defence, Glass, Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Continues use up to 800 Deg C
- Single exposure up to 1000 Deg C
- Excellent Chemical resistance
- Excellent Heat resistance
- Halogen free
- Better Flexibility
- Flame retardant
- Good corrosion resistance
- Good thermal durability
- Excellent Heat resistance
Note:
- This wires are not water resistance, oil resistance & moisture resistance
- For use in dry condition
- Lower dielectric strength
- Used for fixed installation only
- Multiple use of this wire reduces its life & lower the strength
