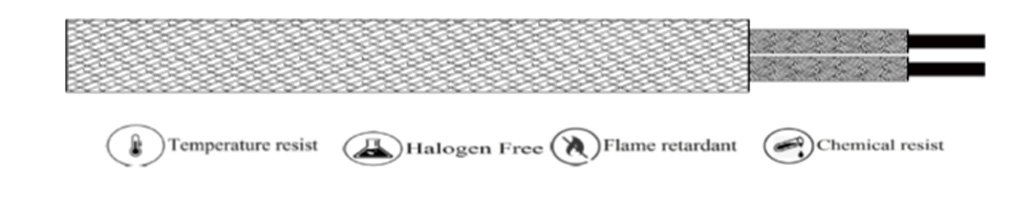

(HEATER-C003) MICA-CERAMIC FIBER- CERAMIC FIBER

Technical Details

Conductor Nickel Plate Copper / Annealed Bare Copper
Conductor Type Stranded (Class 2) / Flexible (Class 5)
Conductor Size 0.50/0.75/1.0/1.5/2.5/4/6/10/16 or as per customer specifications
No of Cores 1,2,3,4 or as per customer specifications
Insulation Braided Fiber Glass yarn impregnated with high temperature varnish
Colour By different colour thread
Inner Sheath Braided Fiber Glass yarn
Inner Sheath Colour White or as per customer specifications
Overall Braiding Stainless Steel wire Braiding
Voltage Grade 300/600 V / 1100 V
Tested Voltage
  • 1500 V for 300 Voltage Grade
  • 2000 V for 600 Voltage Grade
  • 3000 V for 1000 Voltage Grade
Temperature Range -72 Deg C to 500 Deg C
Categories: ,

Applications:

  • Used around Blast furnace
  • Industrial & Commercial Heating Equipments
  • High Temperature appliances
  • Used in industrial area where resistance to high heat , abrasion, chemical, flame and hot material spills is required
  • Used in various industries such as Smelters, Glass & ceramic plants, Factories, Foundries, Rolling mills, Chemical industries, Steel & sponge iron plant etc & many more

Features:

  • Excellence Heat Resistance Properties
  • Suitable for High temperature zone area
  • Excellent chemical & abrasion resistance
  • Enhance thermal & Flame Retardant properties
  • External SS metal covering for enhance mechanical protection
  • Halogen Free & low smoke
  • flame retardant and self-extinguishing acc. to IEC 60332-1
  • Temperature range up to 500 Deg C
  • Outer colour thread on metal braiding available for identification

Note:

  • Fiber Glass wires are not water resistance, oil resistance & moisture resistance
  • Used for fixed installation only
  • Multiple use of fibre glass wire reduces its life & lower the strength
