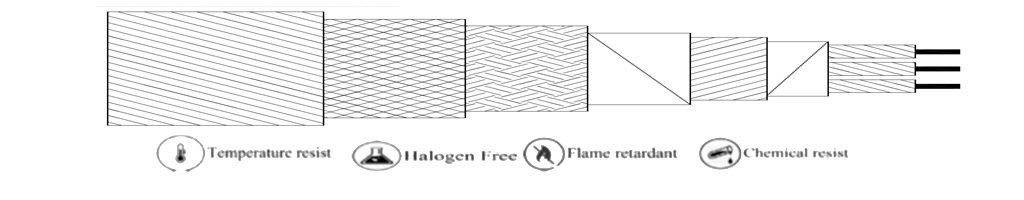

(HR-C450W) – Water resist PTFE –POLYIMIDE-PTFE-MICA-FIBER GLASS-SS BRAIDING-PTFE

Technical Details

Design Standard As per JSS 51038, JSS 51034, JSS 51037 & IS 8130
Conductor Annealed Bare Copper/Nickel Plated Copper
Conductor Type

Stranded (Class 2) / Flexible (Class 5)

Conductor Size 1.50 to 25 Sqmm or as per customer specifications
No of Cores 1,2,3,4 or as per customer specifications
Insulation Wrapped & Sintered PTFE Insulation + Fiber Glass Braiding
Core Identification
  • 2 Core: Red & Black
  • 3 Core: Red, Yellow & Blue
  • 4 Core: Red, Yellow, Blue & Black
  • 5 Core: Red, Yellow, Blue, Black & Green
Heat barrier tape     Polyimide Tape
Inner Sheath Wrapped & Sintered PTFE
Heat barrier tape     Glass Mica Tape
Inner Sheath Braided Fiber Glass yarn
Braiding Stainless Steel Braiding
Outer Sheath Wrapped & PTFE Sintered (For water resist purpose)
Voltage Grade 1100 V
Tested Voltage 3000 V for 1 minute
Temperature Range Up to 450 Deg C
Categories: ,

Applications:

  • Used around Blast furnace
  • Industrial & Commercial Heating Equipments
  • Used in kiln furnace
  • Used where subject to spark, splashing metals
  • High Temperature appliances
  • Used in industrial area where resistance to high heat , abrasion, chemical, flame and hot material spills is required
  • Used in various industries such as Smelters, Glass & ceramic plants, Factories, Foundries, Rolling mills, Chemical industries, Steel & sponge iron plant & many more

Features:

  • Water Resistance
  • Temperature range up to 450 Deg C
  • Excellent temperature resistance & flexibility
  • Excellence Heat Resistance Properties
  • Excellent electrical insulating characteristics
  • Halogen Free & low smoke
  • Outstanding resistance against chemicals & solvent
  • Flame Retardant and self-extinguishing acc. To IEC 60332, JSS 51034
  • Moisture resistance, whether resistance
  • Excellent chemical & abrasion resistance
  • Superb thermal resistance
  • External SS metal covering for enhance mechanical protection
  • Low out gassing behaviour
