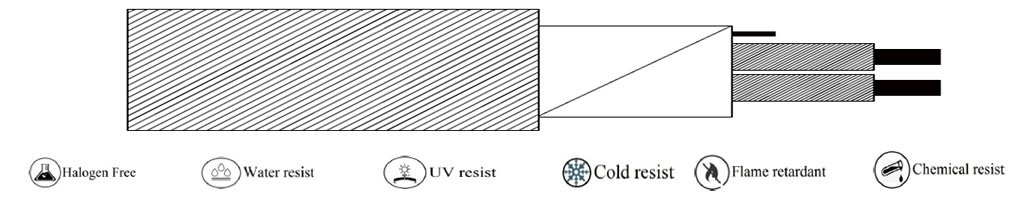

(INST-C001) PVC-Overall Almylar Screen-PVC

Technical Details

Design Standard BS 5308-Part 2, BS 6360, BS 7655, IS 5831, IEC 60332-1
Conductor Annealed Bare Copper/Tinned Plated Copper
Conductor Type Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5)
No of Pair 1, 2, 3,4,6,8,10,12,16, 24or as per customer requirements
Conductor Size(Sqmm) 0.5/0.75/1.0/1.5 or as per customer specifications
Insulation PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Core Identification As per BS 5308 or as per customer specifications
Screening Overall Almylar tape screening along with drain wire covering 100 % area
Outer Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Outer Colour Black/ Blue or as per customer specifications
Voltage Grade 300V / 500 V (1100 V also available on customer specifications)
Temperature Range -30 Deg C to 105 Deg C



Parameter

Unit

Conductor Size

Size

Sqmm

0.5

0.75

1.0

1.5

Max. Resistance at 20 Deg c

Ohm/Km

36.8

25.0

18.4

12.3

Max. Mutual Capacitance between cores

Pf/m

250

250

250

250

Max. Capacitance between core to screen

Pf/m

400

400

400

400

Max. Inductance

mH/Km

1

1

1

1

Max. L/R Ratio

Micro H-Ω

25

25

25

40

Insulation Resistance at 20 °C

Mohm-Km

> 25

Tested Voltage

KVac

1.0 Kv for 1 Minute

Categories: ,

Applications:

  • For Signal & Data Transmission used in measurement & control technology.
  • Analogue & Digital signal transmission
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Process control, computers, control systems & monitor networks etc.

Features:



  • Oil & Flame Resistance
  • Low Conductor Resistance
  • Excellent Flexibility
  • Suitable for digital signal transmission
  • Heat Resistance & Halogen free
  • Offers excellent immunity to cross talk & low frequency electrostatics
