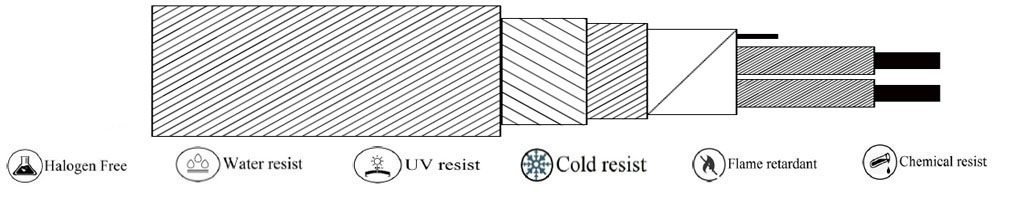

(INST-C003) PVC-Overall Almylar Screen-PVC-G.I. Armouring-PVC

Technical Details

Design Standard BS 5308-Part 1, BS 6360, BS6234, BS 7655, IS 5831, IEC 60332-1, IS 1554-1
Conductor Annealed Bare Copper/Tinned Plated Copper
Conductor Type Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5)
No of Pair 1, 2, 3,4,6,8,10,12,16, 24or as per customer requirements
Conductor Size(Sqmm) 0.5/0.75/1.0/1.5 or as per customer specifications
Insulation Polyethylene as per BS 6234
Core Identification As per BS 5308 or as per customer specifications
Screening Overall Almylar tape screening along with drain wire covering 100 % area
Inner Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC/Polyethylene (Black Colour)
Armouring Galvanised steel wire Armouring / Galvanised Flat Strip
Outer Sheath PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC (Black Colour)
Outer Colour Black/ Blue or as per customer specifications
Voltage Grade 300V / 500 V (1100 V also available on customer specifications)
Temperature Range -30 Deg C to 90 Deg C

Electrical Characteristics

Parameter

Unit

Conductor Size

Size

Sqmm

0.5

0.75

1.0

1.5

Max. Resistance at 20 Deg c

Ohm/Km

36.8

25.0

18.4

12.3

Mutual Capacitance between cores

Pf/m

75

75

75

85

Capacitance between core to screen

Pf/m

400

400

400

400

Max. Inductance

mH/Km

1

1

1

1

Max. L/R Ratio

Micro H-Ω

25

25

25

40

Insulation Resistance at 20 °C

Mohm-Km

> 25

Tested Voltage

KVac

1.0 Kv for 1 Minute

Categories: ,

Applications:

  • For Signal & Data Transmission used in measurement & control technology.
  • Analogue & Digital signal transmission
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Process control, computers, control systems & monitor networks etc.

Features:



  • Oil & Flame Resistance
  • Low Conductor Resistance
  • Excellent Flexibility
  • Suitable for digital signal transmission
  • Heat Resistance & Halogen free
  • Offers excellent immunity to cross talk & low frequency electrostatics
