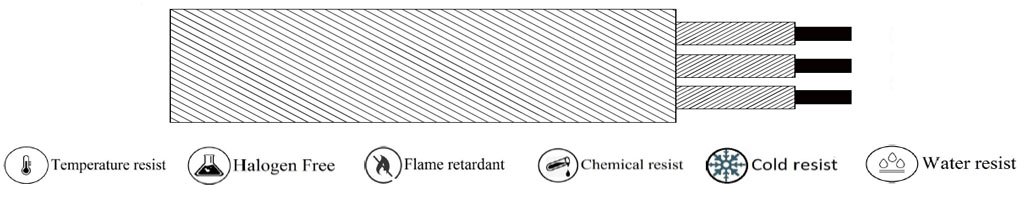

(RTD-C007) Silicon-Silicon
Technical Details
| Design Standard |
As per IS 9968, IS 6380, DIN 43760 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type |
Solid wire / Flexible |
| No of Core |
2, 3,4,6,8 or as per customer requirements |
| Conductor Size(Sqmm) |
AWG 28 to AWG 14 or as per customer requirement |
| Insulation |
Wrapped & Sintered PTFE |
| Core Identification |
As per DIN or Customer Requirement |
| Inner Sheath |
Extruded Silicon |
| Sheath Color |
White or as per customer requirement |
| Voltage Grade |
300V / 600 V / 1100 V |
| Temperature Range |
-50 Deg C to 180 Deg C |
Applications:
- For Signal & Data Transmission used in measurement & control technology in high temperature zone
- Analogue & Digital signal transmission
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame retardant according to IEC60332
- Temperature range up to 180 Deg C for continues use, 250 Deg C for short term
- Lower diameter
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Superb flexibility
- Smooth surface finishing
- Good Dielectric Strength
- Good Insulation resistance
- Good abrasion resistance
