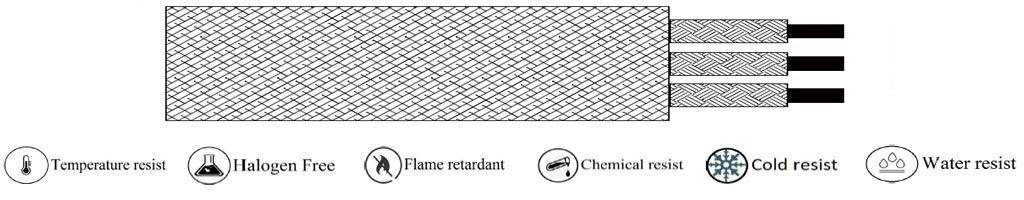

(RTD-C011) FIBER GLASS-FIBER GLASS

Technical Details

Design Standard DIN 43760, IS 8130
Conductor Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper
Conductor Type Solid wire / Flexible
No of Core 2, 3,4,6,8 or as per customer requirements
Conductor Size(Sqmm) AWG 28 to AWG 14 or as per customer requirement
Insulation Fiber Glass Insulation with high temperature varnish
Core Identification As per DIN or Customer Requirement
Inner Sheath Fiber Glass Insulation
Voltage Grade 300V / 600 V / 1100 V
Temperature Range Up to 550 Deg C
Categories: ,

Applications:

  • For Signal & Data Transmission used in measurement & control technology in high temperature zone
  • Analogue & Digital signal transmission
  • Industry plant, power station, refineries, petrochemical plants etc.
  • Industry plant, power station, refineries, petrochemical plants etc.
  • In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.

Features:

  • Flame retardant and self-extinguishing acc. to IEC 60332-1
  • Excellent Heat resistance
  • Temperature range up to 550 Deg C
  • Good Flexibility
  • Moderate Dielectric Strength
  • Low Insulation resistance
  • Good Heat resistance

Note:

  • Fiber Glass wires are not water resistance, oil resistance & moisture resistance
  • Used for fixed installation only
  • Multiple use of fibre glass wire reduces its life & lower the strength
