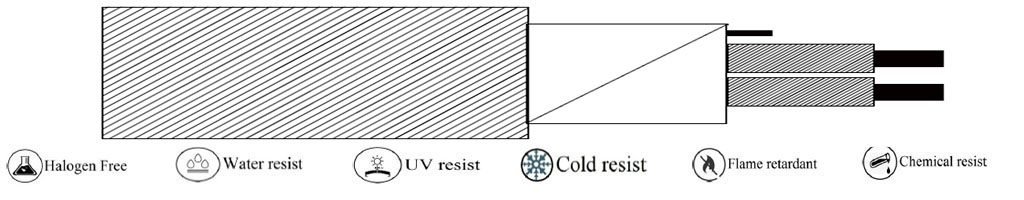

(TC-C004) PTFE –Almylar Screening- PTFE

Technical Details

Design Standard

 As per JSS 51038, ANSI MC 96.1, IS 8784 & IEC 60584.3

Conductor

K/J/T/E/N/KCB/KCA/KX/EX/TX/NX/TX/JX/SC/RC or as per Picture No 1

Conductor Type

Solid wire / Flexible

No of Pair

Single / Multi pair

Conductor Size

 AWG 34 AWG to 14 AWG or Variant as per customer specifications, Refer Size Chart         Picture No.2

Insulation

Wrapped & Sintered PTFE

Core Identification

 As per Picture No 1

Screening

Aluminum mylar tape screening with covering 100 % Coverage area

Outer Sheath

 Wrapped & Sintered PTFE

Outer Colour

 As per Picture No. 1

Accuracy

 As per Picture No. 1

Resistance

As per ANSI MC 96.1

Voltage Grade

300V / 600 V / 1100 V

Temperature Range

-65 Deg C to 260 Deg C

Applications:

  • Used for measuring the temperature
  • For carry the mV signal from sensor to panel
  • In Laboratory for calibration of high temperature furnaces
  • Industry plant, power station, refineries, petrochemical plants etc.
  • In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.

Features:

  • Flame & Fire Resistance
  • Temperature range up to 260 Deg C
  • Excellent protection to external electromagnetic interference
  • Halogen Free & Low smoke
  • Enhance thermal, electrical & fire properties
  • Good Flexibility
  • Excellent Dielectric Strength
  • Excellent Insulation resistance
  • Good abrasion resistance
  • Chemical & Oil Resistance
