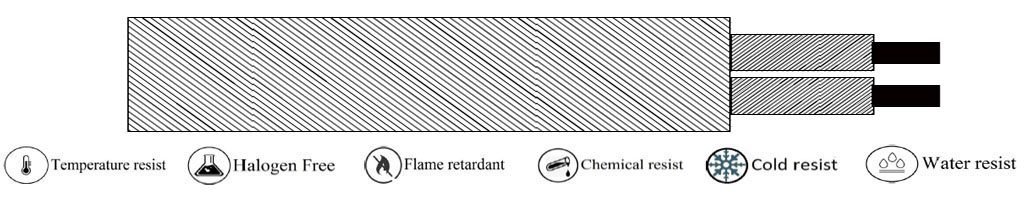

(H-TEMP-C008) Silicon-Silicon
Technical Details
| Design Standard |
As per IS 9968, IS 6380, IS 8130 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper/Silver Plated Copper/ Nickel Plate Copper |
| Conductor Type |
Flexible |
| Conductor Size |
0.50/0.75/1.0/1.5/2.5 or variant as per customer specifications |
| Insulation |
Extruded Silicon elastomeric compound |
| Colour |
Up to 5 Cores by different colour above black colour with numbering |
| Outer Sheath |
Extruded Silicon elastomeric compound |
| Voltage Grade |
300V / 600 V / 1100 V |
| Tested Voltage |
- 1500 V for 300 Voltage Grade
- 2000 V for 600 Voltage Grade
- 3000 V for 1000 Voltage Grade
|
| Temperature Range |
-50 Deg C to 180 Deg C |
Applications:
- For electric connection in high temperature in blast furnace, kiln furnace etc.
- Can be used for signal transmission
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame retardant according to IEC60332
- Temperature range up to 180 Deg C for continues use, 250 Deg C for short term
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Superb flexibility
- Smooth surface finishing
- Good Dielectric Strength
- Good Insulation resistance
- Good abrasion resistance
- Excellent moisture & Oil Resistance
