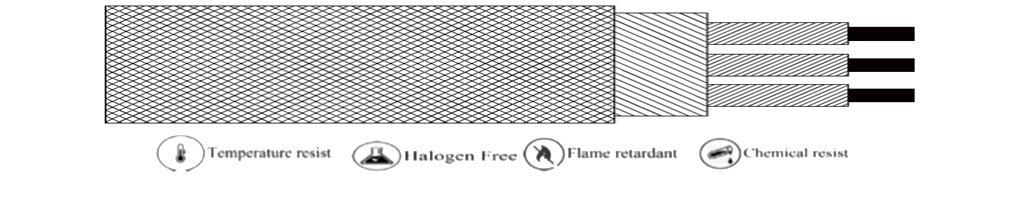

(HR-C300) TEFLON –TEFLON-SS BRAIDING

Technical Details

Design Standard

JSS 51034, JSS 51038, IS 8130

Conductor

Annealed Bare Copper/Nickel Plated Copper

Conductor Type

Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5)

No of Core

1, 2, 3,4,5 (R,Y,B, N, E) as per requirement

Conductor Size(Sqmm)

 0.5 to 6 Sqmm or as per customer specifications

Insulation

 Wrapped & Sintered PTFE Insulation

Core Identification

2 Core: Red & Black



3 Core: Red, Yellow & Blue



4 Core: Red, Yellow, Blue & Black



5 Core: Red, Yellow, Blue, Black & Green

Inner Sheath

Wrapped & Sintered PTFE Insulation

Outer Braiding

Stainless Steel Wire Braiding with minimum 80 % coverage area

Voltage Grade

1100 V

Tested Voltage

3000 V for 1 minute

Temperature Range

Up to 300 Deg C

Categories: ,

Applications:

  • Used around Blast furnace
  • Industrial & Commercial Heating Equipments
  • Used in kiln furnace
  • Used where subject to spark, splashing metals
  • High Temperature appliances
  • Used in industrial area where resistance to high heat , abrasion, chemical, flame and hot material spills is required
  • Used in various industries such as Smelters, Glass & ceramic plants, Factories, Foundries, Rolling mills, Chemical industries, Steel & sponge iron plant & many more

Features:

  • Outstanding resistance against chemicals & solvent
  • Temperature range up to 300 Deg C
  • Excellent temperature resistance & flexibility
  • Excellence Heat Resistance Properties
  • Excellent electrical insulating characteristics
  • Halogen Free & low smoke
  • Flame Retardant and self-extinguishing acc. To IEC 60332
  • Moisture resistance, whether resistance
  • Excellent chemical & abrasion resistance
  • Superb thermal resistance
  • External SS metal covering for enhance mechanical protection
  • Low out gassing behaviour
