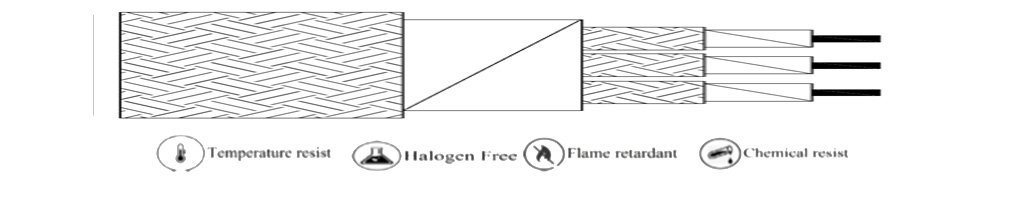

Heatflexo 800 Mica-Double Silica yarn-Overall Mica-Silica yarn Braiding

Conductor

Nickel Plated Copper (27%) as per ASTM B355

Conductor Type

Solid / Stranded (Class 2) / Flexible (Class 5)

Conductor Size

1.50 to 25 Sqmm or as per customer specifications

No of Cores

1,2,3,4,5 or as per customer specifications

Insulation

6 layer Mica tapping over that 2 layer of silica insulation braiding

Core Identification

    2 Core: Red & Black

(By color thread)

      3 Core: Red, Yellow & Blue

      4 Core: Red, Yellow, Blue & Black

      5 Core: Red, Yellow, Blue, Black & Green

Heat barrier tape

6 layer Mica tape

Outer Braiding

Silica yarn braiding

Voltage Grade

1100 V

Tested Voltage

3000 V for 1 Minute

Temperature Range

Up to 800 Deg C
