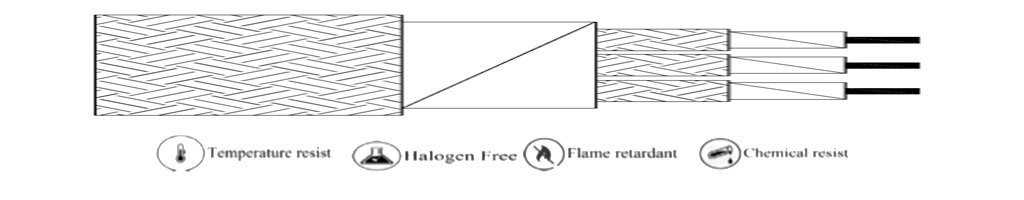

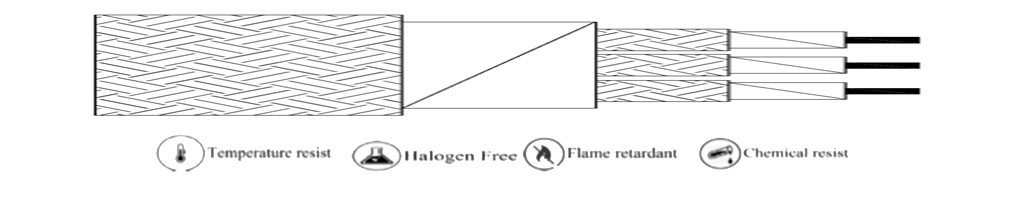

Heatflexo 600 Mica-Double Fiber Glass-Overall Mica-Fiber Glass Braiding

Conductor

Nickel Plated Copper as per ASTM B355

Conductor Type

Solid / Stranded (Class 2) / Flexible (Class 5)

Conductor Size

1.50 to 25 Sqmm or as per customer specifications

No of Cores

1,2,3,4,5 or as per customer specifications

Insulation

6 layer Mica tapping over that 2 layer of Fiber Glass nsulation braiding

Core Identification

2 Core: Red & Black

(By color thread)

3 Core: Red, Yellow & Blue

4 Core: Red, Yellow, Blue & Black

5 Core: Red, Yellow, Blue, Black & Green

Heat barrier tape

6 layer Mica tape

Outer Braiding

Double Fiber Glass braiding

Voltage Grade

1100 V

Tested Voltage

3000 V for 1 Minute

Temperature Range

Up to 600 Deg C
