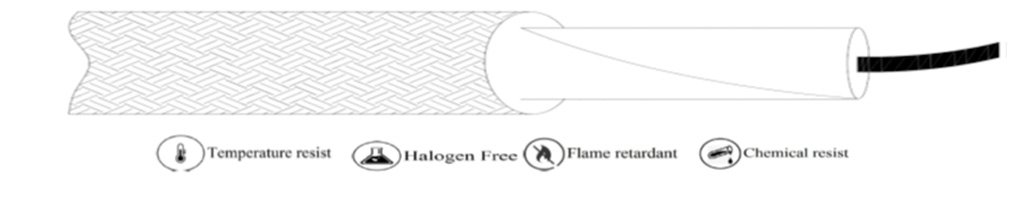

(HEATER-CM800) Mica-Double Ceramic Yarn with modified silcion coating
Technical Details
| Conductor | Nickel Plated Copper/Nickel Plated Copper 27%/Pure Nickel |
| Conductor Type | Stranded (Class 2) / Flexible (Class 5) |
| Conductor Size | 0.35 to 6 Sqmm or as per custoemr specifications |
| Insulation | Heat barrier mica tape + cearmic yarn insulation |
| Outer Sheath | Ceramic yarn braiding with modified silcon coating |
| Colour | By different colour thread |
| Voltage Grade |
Up to 600 V, 1100 V |
| Temperature Range | Up to 800 Deg C |
Applications:
- Electrical connection in high temperature equipments
- Internal wiring of commercial & industrial heating equipments
- Internal wiring of commercial & industrial cooking equipments
- High Temperature furnaces
- Muffle Furnace
- Power connection in heating zone areas
Features:
- Temperature range up to 800 Deg C
- Varnish temperature range up to 400 °C & overall cable perform over 800 °C.
- Smooth surface finishing
- Excellent flexibility
- Excellent temperature resistance
- Excellence Heat Resistance Properties
- Outstanding resistance against chemicals & solvent
- Flame Retardant and self-extinguishing acc. To IEC 60332
- Superb thermal resistance
Note:
- Ceramic yarn wires are not water resistance, oil resistance & moisture resistance
- Used for fixed installation only
- Multiple use of these wires reduce its life & lower the strength
