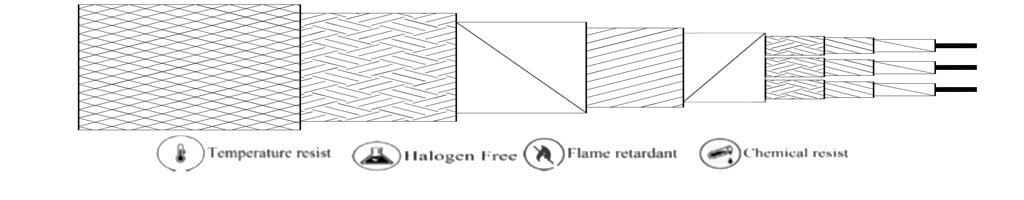

POWERFLEXC-600W (Water resist) Polyimide-Mica-Double PTFE –-Double Fiber Glass-Inner PTFE-Mica- Fiber Glass-SS Briding

Design Standard	As per JSS 51038, JSS 51034, & IS 8130
Conductor	Nickel Plated Copper as per ASTM B355
Conductor Type	Stranded (Class 2) / Flexible (Class 5)
Conductor Size	1.50 to 25 Sqmm or as per customer specifications
No of Cores	1,2,3,4,5 or as per customer specifications
Core Insulation	Polyimide tape over that mica tape + Double PTFE + Double Fiber Glass Braiding
Core Identification	2 Core: Red & Black 3 Core: Red, Yellow & Blue 4 Core: Red, Yellow, Blue & Black 5 Core: Red, Yellow, Blue, Black & Green
Inner Sheath	Wrapped & Sintered PTFE
Heat barrier tape	Glass Mica Tape
Inner Sheath	Braided Fiber Glass Yarn
Overall Braiding	Stainless Steel Braiding
Voltage Grade	1100 V
Tested Voltage	3000 V for 1 minute
Temperature Range	Up to 600 Deg C

Categories: Cables, Heat Resistent

Applications:

Used around Blast furnace
Industrial & Commercial Heating Equipments
Used in kiln furnace
Used where subject to spark, splashing metals
High Temperature appliances
Used in industrial area where resistance to high heat , abrasion, chemical, flame and hot material spills is required
Used in various industries such as Smelters, Glass & ceramic plants, Factories, Foundries, Rolling mills, Chemical industries, Steel & sponge iron plant & many more
