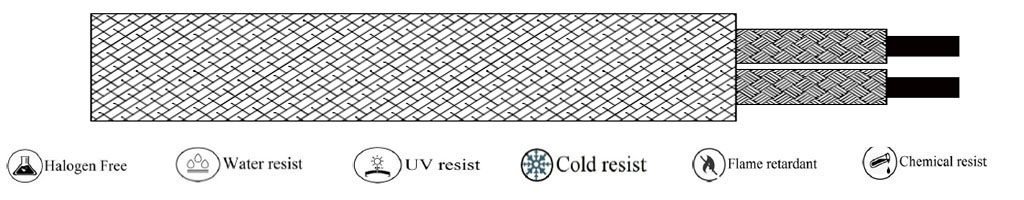

(TC-C022) CERAMIC YARN- CERAMIC YARN
Technical Details
|
Design Standard |
ANSI MC 96.1, IS 8784 & IEC 60584.3 |
|
Conductor |
KT/ET/TT/NT/TT/JT |
|
Conductor Type |
Solid wire / Flexible |
|
No of Pair |
Single / Multi pair |
|
Conductor Size |
AWG 32 AWG to 14 AWG or Variant as per customer specifications, Refer Size Chart Picture No.2 |
|
Insulation |
Ceramic Yarn Insulation |
|
Core Identification |
As per Picture No 1 |
|
Outer Sheath |
Ceramic Yarn Insulation |
|
Outer Colour |
As per Picture No. 1 |
|
Accuracy |
As per Picture No. 1 |
|
Resistance |
As per ANSI MC 96.1 |
|
Voltage Grade |
300V |
|
Temperature Range |
Up to 800 Deg C |
Applications:
- Used for measuring the temperature
- In Laboratory for calibration of high temperature furnaces
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- flame retardant and self-extinguishing acc. to IEC 60332-1
- Excellent Heat resistance
- Temperature range up to 800 Deg C
- Good Flexibility
- Low Dielectric Strength
- Low Insulation resistance
- Excellent Heat resistance
Note:
- Ceramic wires are not water resistance, oil resistance & moisture resistance
- Used for fixed installation only
- Multiple use of Ceramic yarn wire reduces its life & lower the strength
